OUR SALES INVENTORY FOCUS

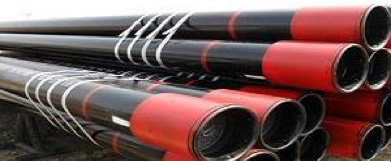

CASING (OF ALL RANGE AND SIZES)

Large diameter pipe that is assembled and inserted into a recently drilled section of a borehole.

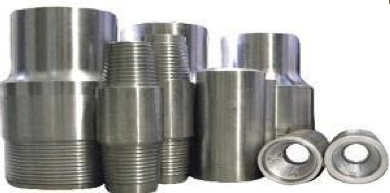

CROSSOVERS (OF VARIOUS SIZES)

A specialized tool, frequently used in gravel- pack operations, that enables the circulation of the treatment fluid (slurry) from the internal flow path of the tool string.

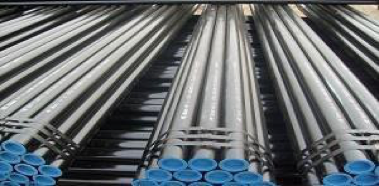

TUBING (OF ALL SIZES)

Thru tubing equipment pertains to the special sets of thru tube tools (also ... from the oil well as these treatments are conducted while the well is producing

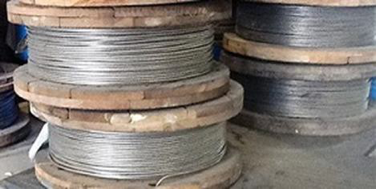

CONTROL LINES

A small-diameter hydraulic line used to operate downhole completion equipment such as the surface controlled subsurface interface safety valve.

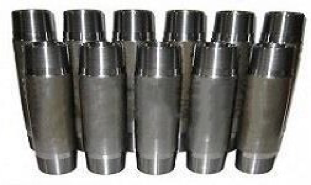

NIPPLES

The nipple is normally used for direct location of plugs, flow control devices, and to hang off pressure temperature guage(s). The device is design for slickline locking mandrels and features a polished seal bore for controlling high pressures.

HYDRO TRIP SUB

Hydro Trip Sub is used to set hydraulic actuated tools such as packers, pack-off assemblies and firing devices for perforating systems etc.

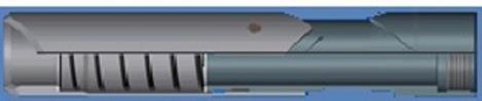

RATCHETING MULE SHOE

The ratcheting mule shoe is a re-entry tool used to continually index or rotate when it locates the top of a shoulder or packer.

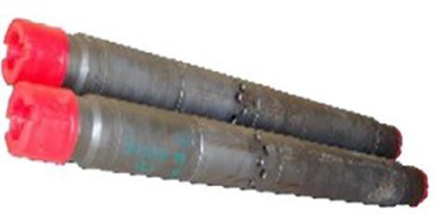

SLIDING SLEEVE

Sliding Sleeves are used to open and close communication between the annular area and tubular area of completed production well.

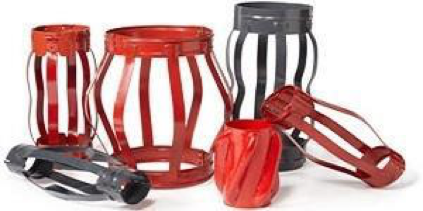

CENTRALIZERS

A mechanical device that keeps casing from contacting the well-bore wall.

BLAST JOINTS

Blast Joints are heavy wall tubes which are run as an integral part of the tubing string.

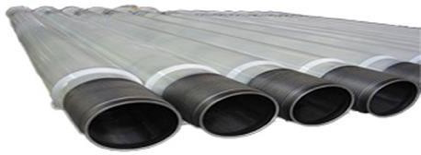

FLOW COUPLING

The ICS Flow Coupling is a heavy walled tubing coupling used as an integral part of the tubing completion string

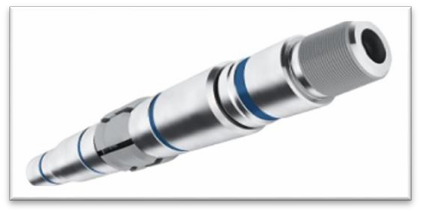

SHIFTING TOOL

The shifting tool is designed to move the inner sleeve of the Sliding Sleeve System into the open or closed position.

TELESCOPING JOINT

A completion component designed to accommodate tubing movement or length changes while maintaining a hydraulic seal between the production conduit and the annulus.

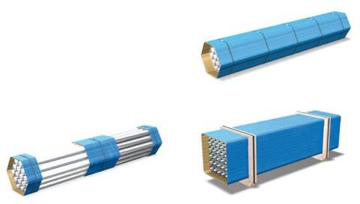

LAMIFLEX

Lamiflex offers efficient packaging system for wire and cable drums, oil and gas pipes, and bar and tube steelwork. The product is especially designed to protect against impact damage, rough terrain, dust, sea- and rainwater, UV-irrigation and other extreme climatic changes.

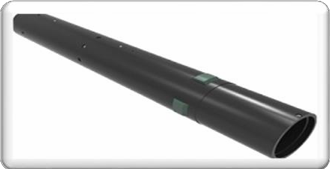

LOCK MANDREL

Lock Mandrels are primarily used to set or shift flow control devices such as plugs, check valves and sliding sleeves.

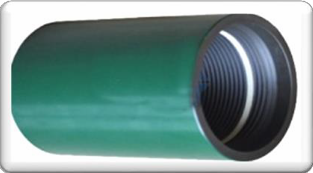

ADOPTER

The ICS Flow Coupling is heavy walled tubing coupling used as an integral part of the tubing completion string.

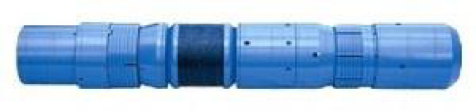

PERMANENT PACKER

Permanent Packers are used on installations requiring premium production equipment for high temperatures and pressures.

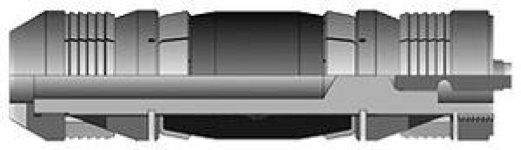

BRIDGE PLUGS

We have reliable high-pressure bridge plug that can be easily drilled. It is used for temporary or permanent zone Isolation or well abandonment.

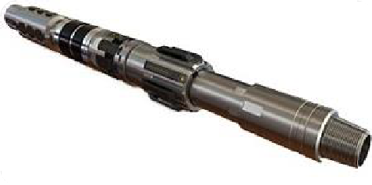

RETRIEVABLE PACKER

We have a variety of Retrievable Production Packers for a large range of casing sizes to meet your well service or completion requirements.(S)

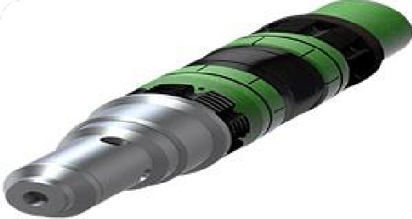

CEMENT RETAINER

The Cement Retainer is a drillable packer that provides the end user with a tool that will consistently contain well pressures at elevated temperatures and pressures. This tool is designed to be used for remedial cementing operations and light service applications. This tool permits faster removal from the well with either rotary or cable tool methods due to its compact size and the selection of high quality construction materials.

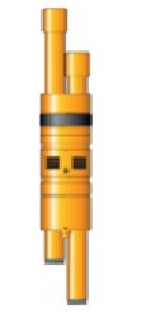

DUAL PACKER

This is basically a “mid-string” isolation packer that is designed to seal off approximately two strings of tubing. The dual packer allows the simultaneous production of two zones while keeping them isolated. Most multiple-string packers are retrievable; however, some permanent models exist for use in HP/HT applications. Standard configurations have bidirectional slips to prevent movement and maintain pack off with the tubing landed in the neutral condition.

HALF MULE SHOE GUIDE

The Half Mule Shoe Guide is standard with the seal assembly to allow for easy entry into the packer bore.

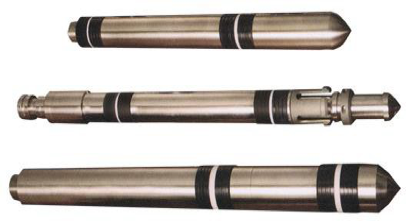

WIRELINE RETRIEVABLE DUMMY VALVE

They are installed in side pocket mandrels as a non- equalizing isolation tool. The Wireline Retrievable Dummy Valve is an isolation tool designed to blank communication between the tubing and casing. This valve can be used to blank off a side pocket mandrel.

GAS LIFT MANDREL

KBMM-R Series Side Pocket Mandrels are use for Gas lift production, Chemical injection, water flood, or circulation operations, Single-string completions Sweet or sour service

CASING AND TUBING

Hunting is ideally positioned to deliver API and premium threaded casing and tubing.

HUNTING CLEAR RUN

Highly effective performance against anti-galling, corrosion protection, friction protection and the environmental footprint.

SAFETY VALVE

A safety valve is a valve that acts as a fail-safe. An example of safety valve is a pressure relief valve (PRV), which automatically releases a substance from a boiler, pressure vessel, or other system, when the pressure or temperature exceeds preset limits.

Features

• Simple, compact design
• Complete metal-to-metal well containment in the closed position (body/seat connections and flapper)
• MTM flapper sealing (no resilient seal required)
• Unique hydraulic actuation (single-piece piston/flow tube)
• Hydraulic chamber construction isolates the majority of the internal valve components and exposes them to clean hydraulic fluid
• Positive debris barrier at both ends of flow tube in full open position
• Maximized piston area and spring force
• Flow tube construction prevents well solids and debris from settling on top of the piston

LATCH SEAL ASSEMBLY

The Latch Seal Assembly is used to lock into a polish bore with seals and be held in place with a ratching latch system. The seals isolate production tubing and annulus by location in a seal bore assembly or seal bore packer with the receptable profile for the latch system. The Latching Seal Assembly is available in various sizes meeting the requirements for most final completion designs.

Retrieval is accomplished with a straight over pull that overcomes the locking system in the event of work-over operations or re-completion operations as required.

PUP JOINT

We have API casing and tubing pup joints which are manufactured according to API Spec 5CT. Pup joints are non-standard lengths of piping used to adjust the height of full length tubing, drill pipe, line pipe, or casing strings. Strings of pipe are assembled with standard length tubular goods that are typically 31 feet in length. As the drill string, production tubing, or casing is lowered into the well bore a pup joint is added to the pipe string in order to adjust the length of the string to its exact requirements.
